Offer

Tanks, hydrophore blocks for sanitary water, heater and fuel oil

The blocks are used for pumping (heating) and maintaining the pressure of the cold water supply network intended for sanitary purposes.

They can be installed on sea ships with unrestricted voyage. The dimensions of the block, device parameters, hydraulic diagram and materials used according to the requirements of the ordering party.

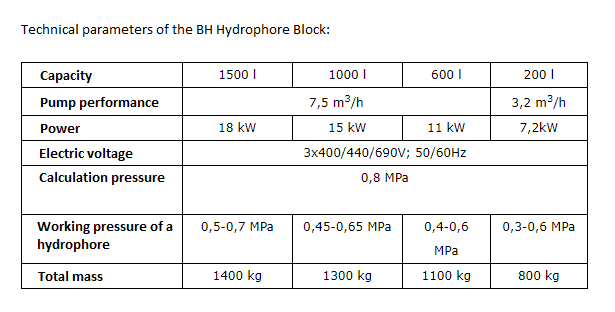

Technical parameters of the BH Hydrophore Block:

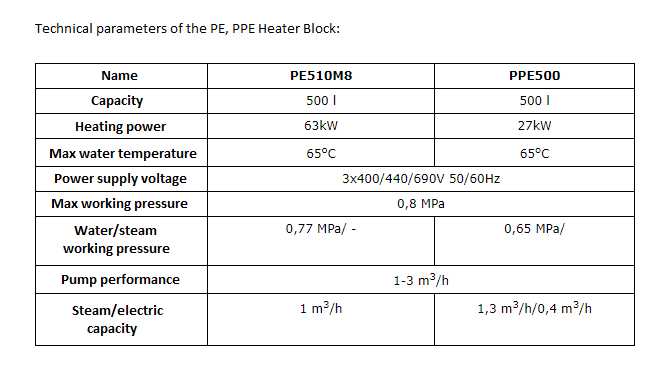

Technical parameters of the PE, PPE Heater Block:

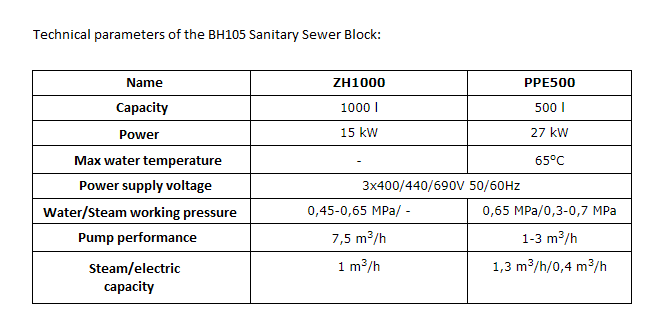

Technical parameters of the BH105 Sanitary Sewer Block:






Catering equipment

Our range of equipment for galleys includes:
- Electric water boilers for heating sanitary water,
- Electric pans,
- Electric cookers with ovens,
- Round or square boiling pans,
- Bakery ovens, pizza ovens or convection ovens,
- Stainless steel furniture: tables, cabinets, shelves... etc.




Sewage treatment plants

LK-type Sewage treatment plants are intended for biological treatment and disinfection of fecal sludge (blackwater) and sanitary sewage (greywater) on ships with unrestricted voyage. The device can be made of black powder coated steel or stainless steel and is equipped with pumps, air compressors, the necessary fittings and a switchgear to control the entire wastewater treatment process. The device operates automatically.

The device can be segmented, which facilitates assembly without the need to cut the ship's side or other segments.

The device can be made with the SBG, PRS, GL, MRS, etc. certificate.

Features:
- efficiency: from 2.5 m3/d to 22 m3/d
- power demand: from 8.75kW to 12.2kW
- power supply voltage: 3x380V/50Hz, 3x440V 60Hz
- oxygen demand: <50 mg/dm3
- suspension of solids: <100 mg/dm3
- Coli index: <250 in 100 ml
- free chlorine residue: <5 mg/dm3

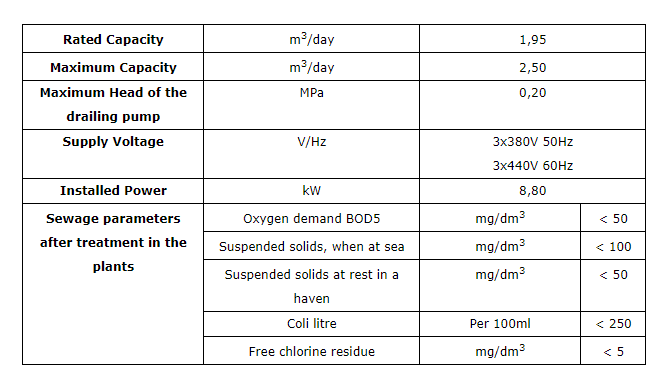

Technical parameters:






Water and oil heaters

We offer electric, steam and electric-steam heaters and boilers for sanitary water and fuel oil. We make heaters according to the individual needs of the customer with the receipts of classification societies.

POE electric fuel oil heaters can be used to heat fuel oil. The heaters are installed between the pump feeding oil to the centrifuge and the lube oil centrifuge. They can be installed on ships with unrestricted voyage and onshore.

PE-200-500 electric water heaters are used to heat freshwater for sanitary purposes. They can be installed on ships with unrestricted voyage and onshore. PE-200 and PE-300 heaters can be mounted (A), while the PE-500 heaters are also available in a standing version (B).

PPE electric-steam boilers: heater blocks are designed for heating water intended for sanitary purposes (freshwater and drinking water) and for its distribution throughout the water installation. The device can be mounted on vessels with unrestricted voyage, working reliably regardless of the environmental conditions.

The PP - 200/5 freshwater steam boiler is used in freshwater circuits for sanitary purposes and can be installed on sea ships with unrestricted voyage.

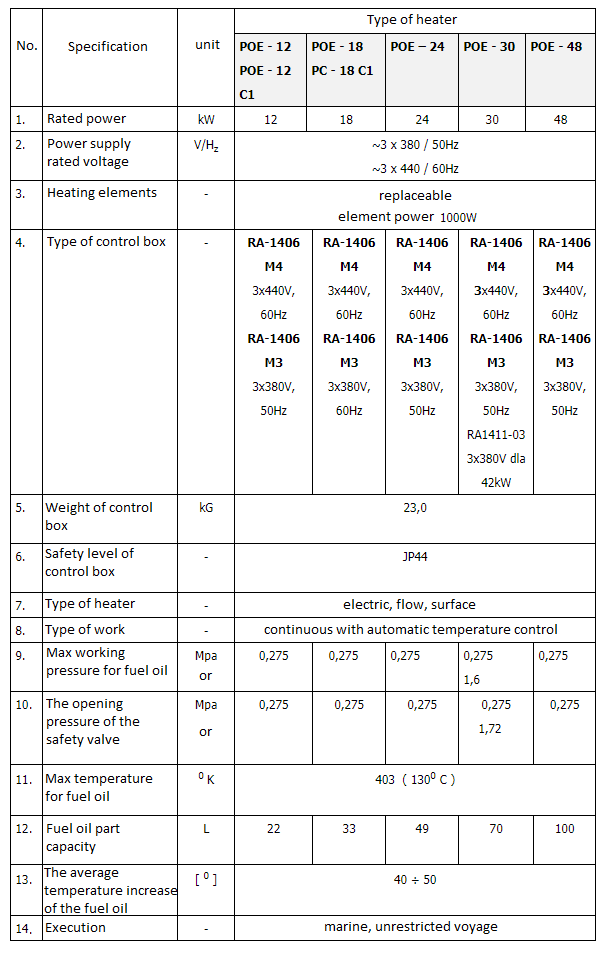

POE Electric fuel oil heaters:

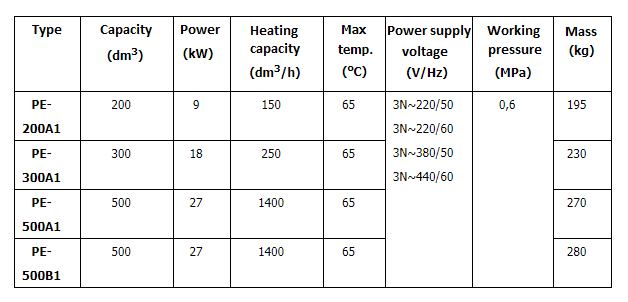

PE-200-500 Electric water heaters:

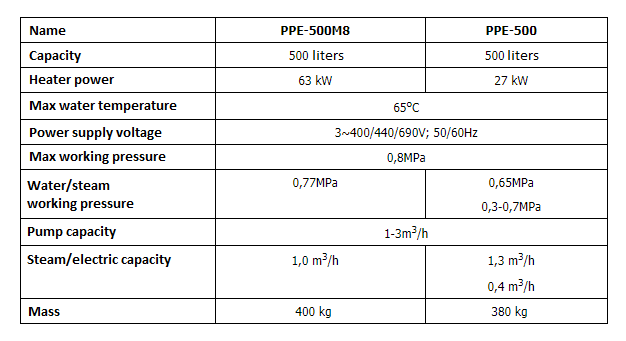

PPE Electric steam boilers:

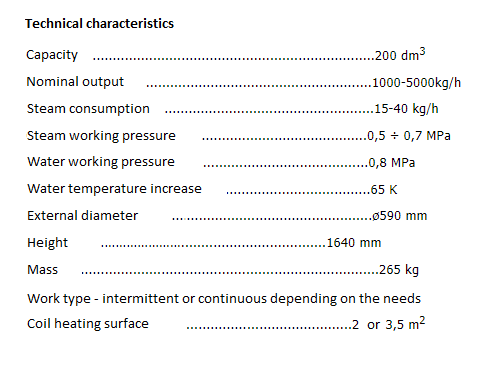

PP - 200/5 Freshwater steam boiler:






Water, oil and fuel filters

Filters designed for work in oil/fuel installations mounted on the suction or discharge side of pumps. The devices meet the requirements of SULZER, HCP Cegielski, ZGODA, B&W and MAN engine manufacturers. Filters designed for work in land installations and ships with unrestricted voyage.

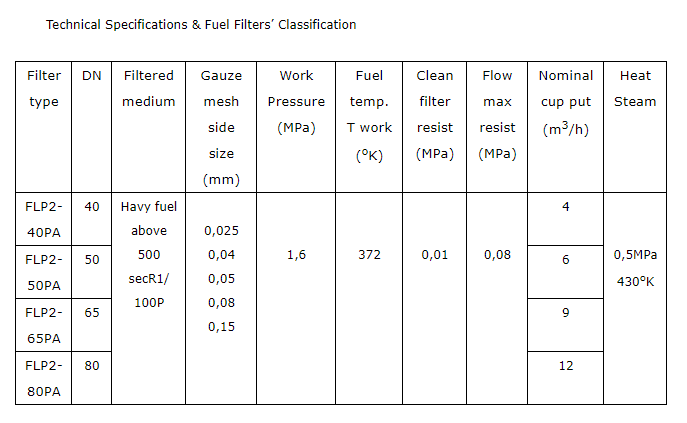

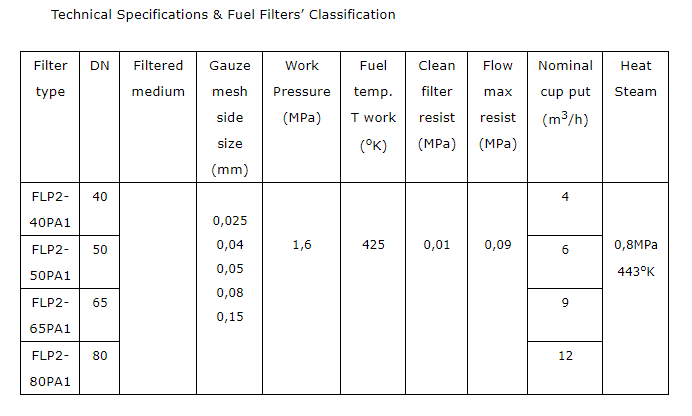

Technical Specifications & Fuel Filters' Classification:



Technical Specifications & Fuel Filters' Classification:

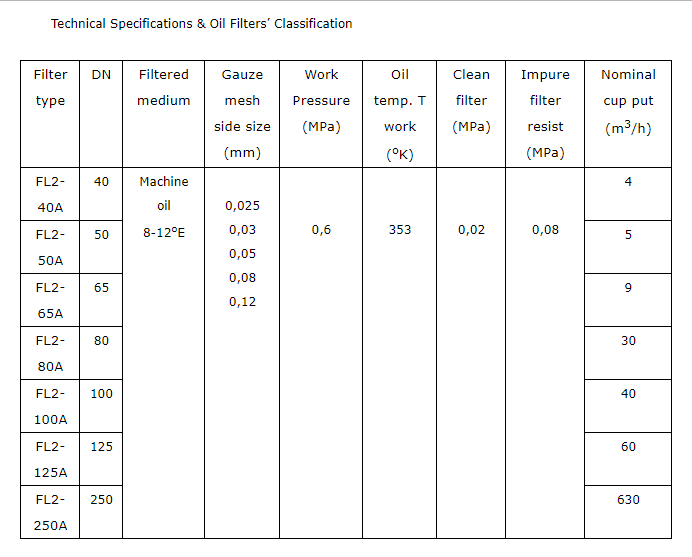

Technical Specifications & Oil Filters' Classification:

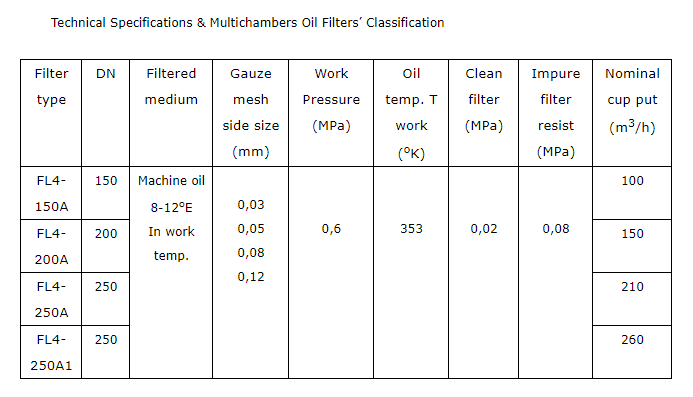

Technical Specifications & Multichambers Oil Filters' Classification:

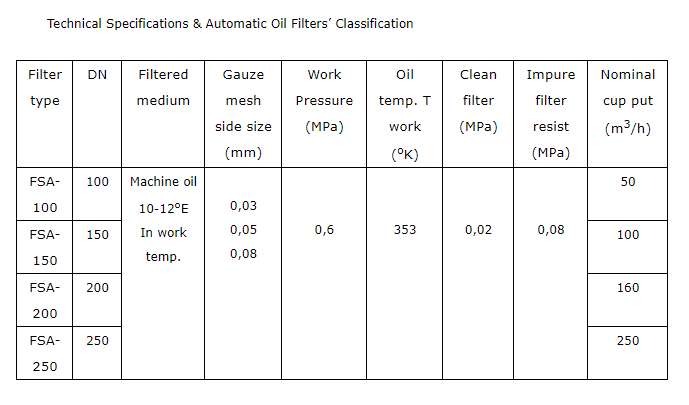

Technical Specifications & Automatic Oil Filters' Classification:






Oil separators for oily waters

OB and NEPTUN oil separators are designed for separating oil-water mixtures with any oil concentration in the water on the intake of the oil separator. By oil, we mean all types of liquid petroleum products and fats with a density of less than 1g/cm3 at a temperature of 15 degree Celsius. Oil separators can be installed on ships and in land installations. The device is adapted to work automatically and is equipped with an oil meter.

The device can be made with the SBG, PRS, GL, MRS, etc. certificate.

Features:
- efficiency: from 0.25 m3/h to 10 m3/h
- power: from 0.6kW to 9kW
- steam consumption*: from 5 kg/h to 200 kg/h (*for the version with a coil)
- power supply voltage: 3x380V 50Hz / 3x440V 60Hz
- oil separation efficiency: <15mg/dm3

Are you looking for parts or filter cartridges for oil separators? Ask us!

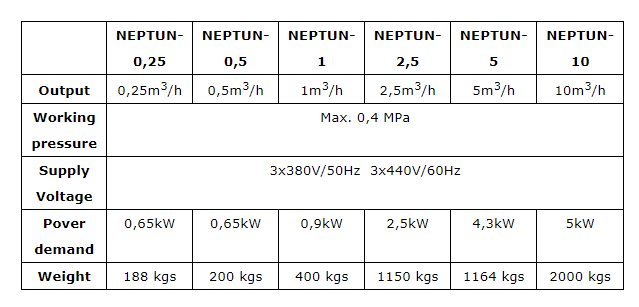

Technical parameters:






Environmental protection

sewage treatment plant
oil separator for oily waters
gas separator
mechanical treatment of municipal waste
filters and water filters for Legionella control




Galvanizing plant

FILTERECHNIK offers full assistance in the construction or operation of galvanizing plants.

Our offers includes:
electroplating lines from design to assembly
tanks
electroplating equipment
ventilation systems
filter presses
water treatment stations




Pumps and compressors

HYDRO-VACUM, TOFAMA, BIALOGON, LFP LESZNO, GZUT, ŚFUP, HYDROSTER, IMO, WSK, GRUNDFOS, MEPROZET, METALCHEM, WAFAPOMP, WILO, EBARA, ESPA, FLYGT, ITT, NOCCHI, ABS, KSB, TEPRO: / A-12 / A-30 /, GAST: / 0822 / 1022 / 1023-P721H / 3040-101B / etc.




Centrifuges

MANN & HUMMEL
ALFA LAVAL: MAB/ MMB/ SRG/ MMPX/ MOPX/ MFPX/ WSB/ WSPX/ FORX/ BRPX/ SAPX/ AFPX/ AFPX/ CHPX/ GTPX/ etc. wirówki WSK (na licencji ALFA-LAVAL),
MITSUBISHI (type SJ, ST),
WESTFALIA (type OSA, OTA, OSB, OSC, SAOG, OTB)




Compressors

HAMWORTHY (type 2TF5, 2SF),
H.CEGIELSKI (type SF, SC, SE, SD),
HATLAPA (type W35,W45, W55, W120),
YANMAR (type S.C. 2N, 5N, 7N, 10N)




Electric motors

CELMA, TAMEL, INDUKTA, ABB, AEG, ELMOR

We provide electric motors according to individual customer needs as well as spare parts.




Spare parts

Electronics

BELMA, FAMOR, WARMA, MERA PNEFAL, CONTROLMATICA, GESTRA, DANFOSS, YUMO, CLORIUS, DREEFS, SAUTER,



Parts for water, oil and fuel heaters (heating elements, thermostats, seals, etc.)

WARMA GRUDZIADZ: WARMA (type PE, PPE, PWE, POE, PP)
RUMIA (type P, PU, PWM),



Parts for oil separators (filter cartridges, seals, covers, valves, etc.)

WARMA GRUDZIADZ: /NEPTUN / OB / WT-3/
We supply spare parts for all oil separators produced in Europe (SKIT, CPS-BMK III, VKF, CPS BV MODI, OHB, UOV, HS MK II, NELSON and others...)



Parts for oil, fuel and water filters (filter cartridges or plugs, seals, valves, etc.)

WARMA: / FO / FP / FLP / FL / FS / FSA / FW /
BOLLFILTER, PALL, CUNO FILTER, HYDAC, ZAMECH, BALDWIN FILTERS, PZL, FILTRON, MANN + HUMMEL, DONALDSON, 3M CUNO, AKO FILTER, BOOL&KIRCH, VEB FILTERTECHNIK, FILTREC, YUGOTURBINA and more



Parts for sewage treatment plants (valves, electronics, filters...)

WARMA: / LK / MOS/ TELKA/
We supply spare parts for all ship sewage treatment plants produced in Europe (AWWA, KA-MR, HL-CONT, MSTP-1, BIOMAT, MSA, KAREA, MSD-II, EOS, STOK, NEPTUMATIC, HELI-FLOW and others...)



Heating elements

We provide all types of heating elements (tubular, patron, boiler, galvanic, ceramic, coil, band)



Seals

We provide seals for Sulzer engines:
ZL40-48
AL25/30
AL20-24
ATL25-30
and others (simmering seals, piston and piston rod seals, scrapers, guides, seals for rotating and swinging elements, gland packing, O-rings, hydraulic pressure accumulators, liquid silicone products, special sealing products: corrugated mixtures, membranes, complex elastomeric fittings, precision fittings, bearings used in vibration isolation technology, etc.)



Wire mesh and wire products

We offer wire mesh from all possible weavable metals, extrusion wires, starter wires, air wires, airbag protection sieves, metal seals, etc.



Pump parts

Seals, shafts, impellers, stators, rotors, couplings, etc.
